SVL97-2
CONSTRUCTION
Call for Pricing

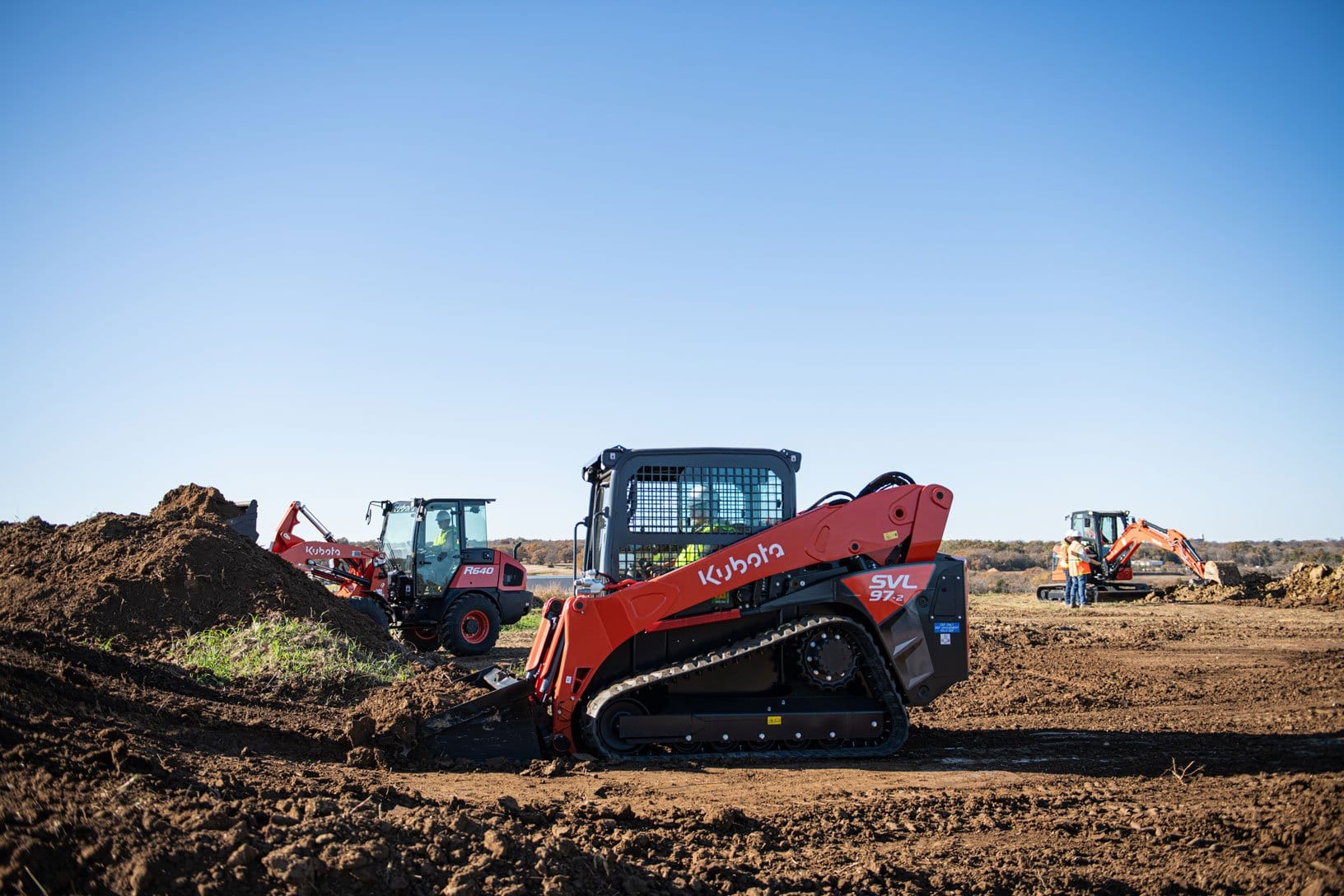

Be the solution you’re searching for as you power through obstacles in your path and adapt to the conditions at hand in the Kubota SVL97-2. Rugged terrain? No problem. The SVL97-2 and its 96.4 horsepower are ready to move ground and make sure you’re working in comfort and in confidence. Factor in its dominant tipping load, breakout force and advanced hydraulic system and we think you and the SVL97-2 are going to get along nicely. A workhorse, a go-getter, a friend-- the Kubota SVL97-2.
Special Offers
Stand Alone Financing Installment Program
Implement Stand Alone Financing
Customer instant rebate for Farmer Veteran Coalition members.
Farmer Veteran Coalition Rebate
*Not Available for National Accounts or Government Customers
LOW-RATE RENTAL BUSINESSES*
Save up to $4000 or 0% A.P.R. FOR UP TO 48 MONTHS with 0% Down ON SVL SERIES!
TRACK LOADERS
$0 Down, 0% A.P.R. for up to 60 Months or Save up to $6,000 on Construction Equipment!
Construction
OPERATOR COMFORT
- Wider Cab Entrance: A wider entrance makes it easier to get in and out.
- Wide And Clean Cab: The spacious interior minimizes fatigue even during long work hours.
- Wide Leg Room: The cab provides ample leg room to reduce operator fatigue.
- Arm Rest: The spacious cab also includes ergonomically placed arm rests on the right and left sides of the seat to minimize.
- 360 Visibility: The edge of the bucket can be seen from the seat. Improved visibility translates to better productivity at the job.
- Pressurized Cab: The cab is pressurized to keep dust, flying debris, and insects away to enhance comfort on the job. Furthermore, noise is kept down to let you work for long hours with minimal fatigue.
- Hand/Dial and Foot Throttle: The SVL97-2' dial and foot throttle both allow you to match the engine speed to the task. The hand/dial throttle is ideal for jobs requiring constant engine speed such as cold planing, trenching or snow blowing. The foot throttle lets the operator vary engine speed for other applications.
SERVICE
- Routine Checks: Simply open the rear bonnet to access all components for daily routine inspections.
- Slide-and-tilt Radiator and Oil Cooler: The radiator can be tilted for easy cleaning.
- Tilt-up Cab: The cab can be tilted 72° without having to lift the arm, allowing easy access to the hydraulic pumps, valves, lines and hydraulic tank.
DURABILITY
- Welded, Integrated Mainframe and Undercarriage: The undercarriage forms an integral part of the main frame for maximum durability.
- Kubota Original Rubber Tracks: Kubota’s original rubber tracks offer outstanding durability and long-life performance. Furthermore, Kubota’s original lug pattern prevents soil from accumulating and improves traction force.
- Triple Flange Lower Track Rollers: A highly reliable triple flange design not only minimizes the risk of detracking, but improves stability as well. They are lifetime sealed and lubricated.
VERSATILITY
- Multi-function levers: The multi-function levers provide fingertip control of all major vehicle and attachment operations, letting you keep both hands on the levers at all times for optimal operating efficiency.
- Quick Coupler: An optional hydraulic quick coupler is available. You can attach or remove attachments using a switch without leaving the seat.
Specifications
Auxiliary Hydraulic Pressure, Psi (bar)
Auxiliary Hydraulics Flow Rate, G P M ( L P M)
Bucket Breakout Force, Lbf (kg)
Displacement Cu. In. (cc)
Ground Clearance, In (mm)
Ground Contact Pressure, Psi (k Pa)
Ground Pressure, (psi)
Height To Hinge Pin, In (mm)
Horsepower (gross)
Lift Arm Breakout Force, Lbf (kg)
Lift Arm Path
Operating Weight, Lbs (kg)
Operator Station
Overall Height, Ft (mm)
Overall Length, Ft (mm)
Overall Width, Ft (mm)
Rated Operating Capacity ( R O C), Lbs (kg)
Tipping Load, Lbs (kg)
Track Ground Contact Length, In. (mm)
Track Rollers (per Side)
Track Width (standard/wide), In. (mm)
Traction Force, Lbf (kgf)
Traveling Speed: High, Mph (kph)
Traveling Speed: Low, Mph (kph)
Auxiliary Hydraulic Pressure, Psi (bar)
3553 (249.8)
Auxiliary Hydraulics Flow Rate, G P M ( L P M)
23.1 (87.6) / 40.0 (152)
Bucket Breakout Force, Lbf (kg)
7623 (3458)
Displacement Cu. In. (cc)
230.0 (3769)
Ground Clearance, In (mm)
11.5 (293)
Ground Contact Pressure, Psi (k Pa)
Standard: 4.4 (30.3) / 4.5 (31.0) Wide: N/A
Ground Pressure, (psi)
Standard: 4.4 / 4.5 Wide: N/A
Height To Hinge Pin, In (mm)
128.5 (3263.9)
Horsepower (gross)
96.4
Lift Arm Breakout Force, Lbf (kg)
5530 (2509)
Lift Arm Path
Vertical
Operating Weight, Lbs (kg)
11277 (5115) / 11552 (5240)
Operator Station
Open cab / closed cab
Overall Height, Ft (mm)
83.3 (2116)
Overall Length, Ft (mm)
154.6 (3929)
Overall Width, Ft (mm)
Vehicle Width: 77.2 (1962) Width With Bucket: 80 (2032)
Rated Operating Capacity ( R O C), Lbs (kg)
3200 (1451)
Tipping Load, Lbs (kg)
9143 (4147)
Track Ground Contact Length, In. (mm)
65.6 (1667)
Track Rollers (per Side)
5
Track Width (standard/wide), In. (mm)
17.7 (450) / N/A
Traction Force, Lbf (kgf)
12178 (5524)
Traveling Speed: High, Mph (kph)
7.3 (11.7)
Traveling Speed: Low, Mph (kph)
5 (8.0)
