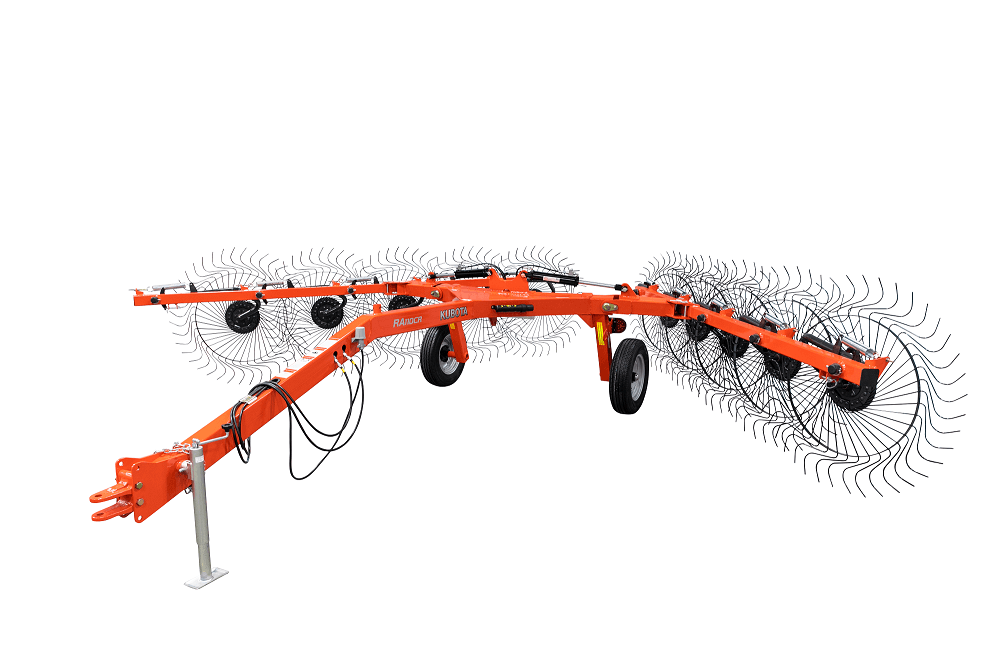

RA108CR
HAY/FARM IMPLEMENTS
MSRP AS LOW AS
$0.00
The fast and productive Kubota RA108CR is here to help increase your output and ensure you’re moving with efficiency. The 16’ 8” working width makes for ample coverage of larger swaths and a 21’ 6” working length means you’re covering plenty of ground. Available with a single or dual kicker wheel and individual wheel suspension, the RA108CR takes contoured ground in stride and makes sure no material goes untouched. Fold up the independent wings and the RA108CR bears a 9’ 4” transport width, perfect for getting you comfortably and safely from point A to point B.
Special Offers
Stand Alone Financing Installment Program
Implement Stand Alone Financing
Customer instant rebate for Farmer Veteran Coalition members.
Farmer Veteran Coalition Rebate
Up to 0% A.P.R. for 48 Months on your new Kubota RA Series!
RAKE SERIES
Specifications
Hydraulic Circuits
Hydraulic Power Required
Minimum P T O Horsepower Required H P/ K W
Transport Height Ft. (m)
Transport Length Ft. (m)
Transport Width Ft. (m)
Weight Lbs. (kg)
Windrow Ft. (m)
Wing Spread
Working Length ( Max.)
Working Width Ft. (m)
Working Ft. (m)
Hydraulic Circuits
closed-center or open-center, one remote
Hydraulic Power Required
1800psi, 10gpm
Minimum P T O Horsepower Required H P/ K W
30 hp
Transport Height Ft. (m)
Min: 8' (2.4) Max: 8' 5" (2.6)
Transport Length Ft. (m)
21' 2" (6.5)
Transport Width Ft. (m)
9' 4" (2.8)
Weight Lbs. (kg)
1460 (662)
Windrow Ft. (m)
Min: 34" (.8) Max: 72" (1.8)
Wing Spread
NA
Working Length ( Max.)
21' 6" (6.6)
Working Width Ft. (m)
Min: 15' 8" (4.7) Max: 16' 8" (5.1)
Working Ft. (m)
55" (1.4)
